241kWh 125kW Commercial & Industrial Energy Storage Cabinet | LiFePO4 ESS

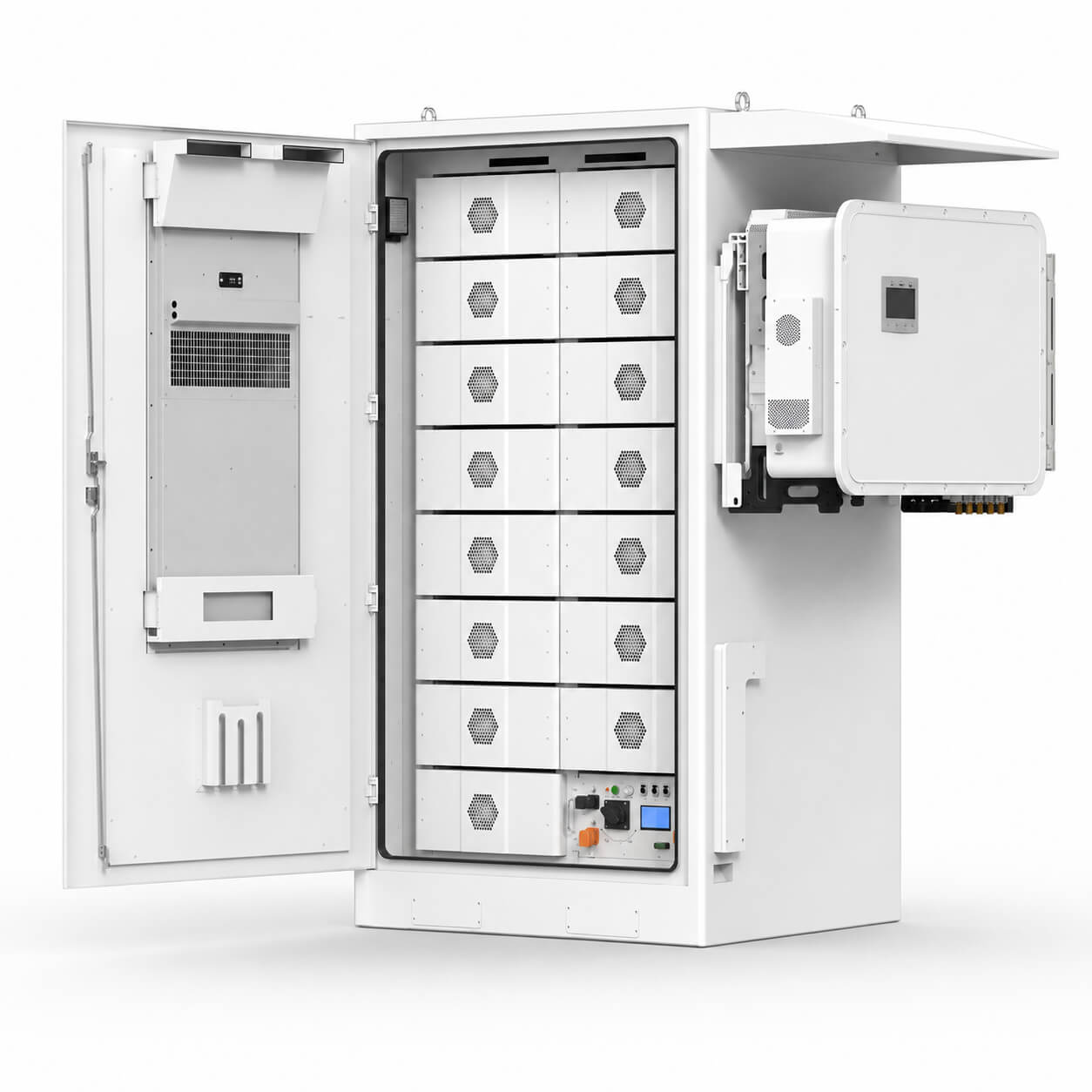

The GCB-E240 Commercial & Industrial Energy Storage Cabinet is an integrated 241kWh / 125kW energy storage solution designed for commercial and industrial applications.
The system combines LiFePO4 battery modules, inverter, BMS, thermal management and fire protection in one compact cabinet, making it suitable for peak shaving, solar energy storage, backup power and grid-connected energy management.
241kWh / 125kW integrated energy storage cabinet
314Ah LiFePO4 battery cells
15 battery modules connected in series
Rated battery voltage: 768V
Operating voltage range: 672–864V
Rated charge/discharge power: 125kW
Three-phase four-wire grid connection
Rated grid voltage: AC380V / 50Hz
Integrated inverter
Integrated fire protection system
Air cooling with refrigeration, ventilation and heating
Supports RS485 and CAN communication
IP54 protection
System efficiency ≥ 90%
| Parameter | Specification |
|---|---|
| Model | GCB-E240 |
| System Type | 241kWh / 125kW |
| Battery Cell | LFP 314Ah |
| Battery Pack | 51.2V 314Ah |
| Rated Voltage | 768V |
| Rated Energy | 241.15kWh / 215.04kWh |
| Voltage Range | 672–864V |
| Rated Charge/Discharge Power | 125kW |
| Grid Type | Three-Phase Four-Wire |
| Rated Grid Voltage | AC380V |
| Grid Frequency | 50Hz |
| Rated Current | 189A |
| Dimensions | 1300 × 1260 × 2375 mm |
| Weight | 2500 kg (without PCS) |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to 50°C |
| Cooling Method | Air Cooling |
| System Efficiency | ≥90% |
| Communication | RS485 / CAN |
Commercial & Industrial ESS / Solar PV Energy Storage / Peak Shaving / Backup Power / Microgrid / Energy Management
